Description

Here comes the new enhanced version of DLC certified Spectrum-Y Plus(Wireless Samsung) from Medic Grow. It is committed to bringing more convenience and more powerful features to both commercial and home growers. It’s the Best Choice for Large Scale Commercial Growth with higher level pursuit.
Based on our most Cutting-Edge Spectrum-Y-Wireless, we launched enhanced version with Samsung diodes in order to meet grower’s higher level demands. Samsung unrivaled in higher quality, they enable growers to cultivate more plants while saving more energy.
The old version Spectrum Y can not dim without working with Spectrum X or external controller. Now we add a stepless dimming knob to it. The most exciting update is, the new Spectrum Y Wireless supports secured and stable wireless connection to our TSC-2 Master Controller and auto-grouping up to 200 units. By working with our own designed touch-screen controller, the Spectrum-Y Plus empowers the grower to choose the right spectrum for their own plants, as we all know, different grow cycle or different strains needs different spectrums.
With a proper combination of Samsung white chips and Osram red chips, the enhanced version of Spectrum Y(Wireless Samsung)’s efficacy is up to 2.9 µmol/J, PPF 2260 µmol/s. High output of 760W+UV/IR makes it possible to provide high quality light to meet more needs. And it achieved a marvelous performance in 4*4 and 5*5 area from our testing.
Since Spectrum-Y Plus applied the design of 8 lighting bars, the fixture gives out the light plants need as even as possible . These foldable bars and UV-IR Add-On make the fixture easily installed. Widely used in indoor commercial grow facilities.
Spectrum Y(Wireless Samsung) Light Features:
- DLC certified for energy rebate, save your budget.
- Little Counterclockwise Rotation for Auto Connection by MESH Wi-Fi;
-
RJ Signal Cable Daisy Chainable - up to 200Pcs lights by wireless & 140Pcs by wire;
- Wattage Dimmable Separately;
- Stepless dimming.
- Higher Output Spectrum Tunable (Default is F1/FS, more than V1, F1, VS, FS with TSC-2 controller/Spectrum X);
- Enhanced version with Samsung&Osram LEDs, 2.9 µmol/J efficacy and 2260 µmol/s PPF;
- Optional UV+IR enhanced bar for advanced quality output;
- 8 Bar 5X5 feet Coverage;
- Default voltage of 110-277V, and 347-480V is customizable
- Suggest to use together with our TSC-2 controller or X(Though Compatible with TrolMaster System+Adaptor LMA-14).
- Wireless group control, Sunrise&Sunset and Timer functions by using with TSC-2 controller.
- Independent control of UV/IR.
- Multiple Signal transmission channels ensure the stability of connections.
- Perfect thermal management and excellent IP65 waterproof design.
- Ready to use: includes all lighting accessories, just unfold and hang it up;.
- Damper design for easier installation. Easy to hold still at any angles.
High Efficacy with SAMSUNG and OSRAN Diode

Spectrum-Y Plus Light Interface
DLC certified for energy rebate.

Spectrum-Y Plus 3 Ways RJ Signal Cable Daisy Chain
Spectrum-Y Plus LED Grow Light with Optional Detachable UV+IR Bar
Spectrum-Y Plus Wireless LED Grow Light with UV+IR Bar Light Effect
Tunable Full Spectrum
The default spectrum is F1/FS when working alone. Supports 4 spectrums tunable(V1, F1, VS, FS) when connecting with Spectrum X and TSC-2 Controller. The VS and FS mode are working under the UV + IR Bars are installed.
The Full spectrum design covers each critical phase of growth from vegetative to flowering. The spectrum tuning capability allows growers to experiment with spectrum recipies.
DIY spectrum for differerent growing stages, plants do not need to be moved to another rooms.

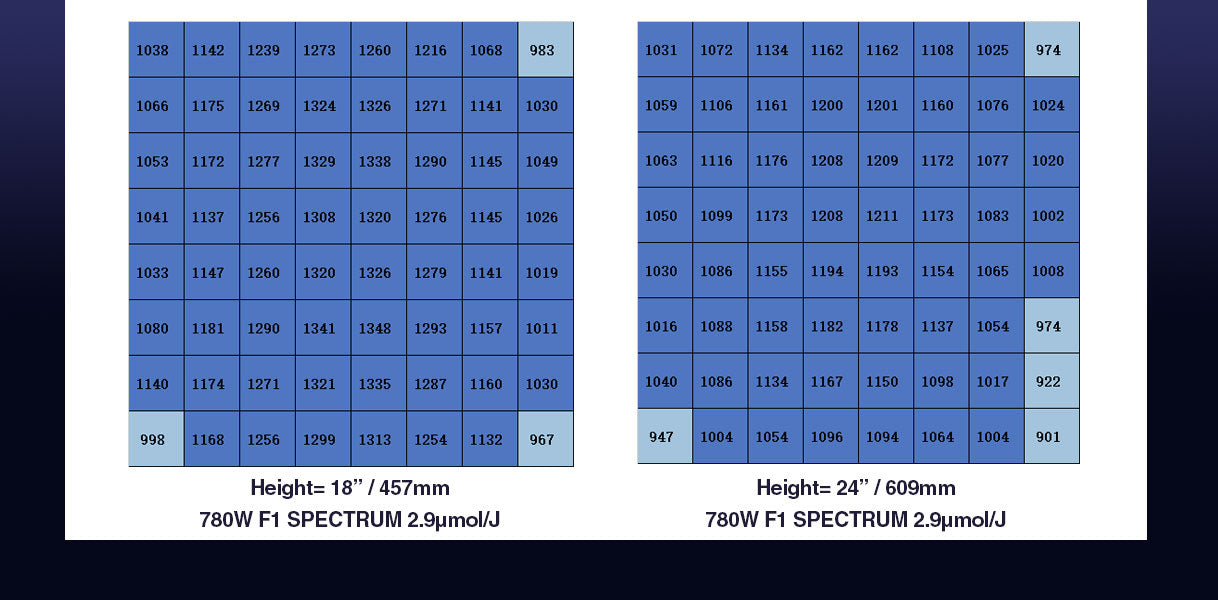

PPFD Distribution
Spectrum-Y Plus wings can be hold at any angle
Dimension
What is in the box

Specification
|
Spectrum-Y Plus |
Spectrum-Y Plus (With 2x UV&IR Bars-100 Watt) |
Spectrum |
V1, F1 |
V1, F1,VS, FS |
PPF(light output) |
2260 μmol/s |
2452 μmol/s |
Wattage |
780 Watts |
880 Watt |
Efficacy |
2.9 μmol/J @277 AC |
2.8 μmol/J @277 AC |
Coverage |
4x4 Feet / 5x5 Feet |
Connection |
200Pcs Light with TSC-2 Controller By Wireless
140Pcs Light with TSC-2 Controller By Wire
70Pcs Light with Spectrum X By Wire
|
Fixture Dimensions |
44.52'' x 44.88" x 2.76" |
AC Input Voltage |
Default: 110-277V AC, 50/60Hz |
Customizable: 347-480V AC,50/60Hz |
Max Operating Temperature |
95°F / 35°C |
Mounting Height |
≥ 12'' (30cm)Above Canopy |
Thermal Management |
Passive |
Dimming |
Wireless / 0-10V |
Gross Weight |
13.7KG/PC 30.2lbs |
14.7KG/PC 32.4lbs |
Life Span |
>50,000hours |
Warranty |
5-Year Warranty | 1-Year Warranty for UV-IR Addon |
ETL Control No. |
5002416 |
DLC Model No |
|
Operation Guide
Medic Grow Spectrum-Y Plus Wireless Samsung LED Light User Manual
